Item

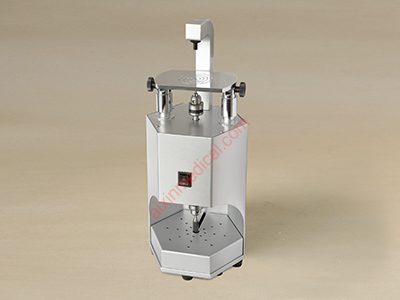

AX-88B Pindex and Trimming Machine
Article Number
MP05009
Certification
CE Approved ISO9001:2000 Approved
Purpose
The unit is used in model-making, it provides a simple way to fabricate precise parallel drill channels.
Description

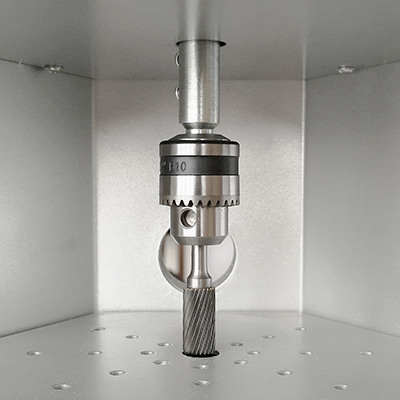

This AX-88B Pindex and Trimming Machine is used for making porcelain teeth, it is a 2-in-1 machine for both drilling pinholes and trimming of plaster models. It features high rotational speed, low noise, high drilling precision. The precision of the laser positioning system, platform and the axis ensures ideal pinhole drilling. The lower part of the unit is equipped with a carbide bur for quick, stable and easy trimming. The connector at the back enables optional dust collector connection which keeps the workplace clean.
Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 150W
Rotational Speed: 2,800RPM
Drilling Depth: 0~12mm (Adjustable)
Dimensions: 50cm x 21cm x 21cm (H W D)
Shipping Dimensions: 55cm x 25cm x 25cm (H W D)
Weight: 25kg
Parts Included
Machine×1
Manual×1
Power Cord×1
Fuse×1
Grinding headl×1
Burl×1
Spare Parts&Accessories

|
