Item

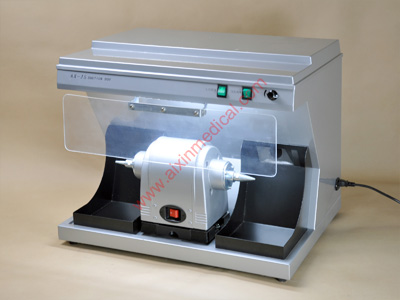

AX-J5 Dental Laboratory Polishing Compact Unit (Vacuum)
Article Number
RW03005
Certification
CE Approved ISO9001:2000 Approved
Purpose
The unit is used for polishing castings in dental laboratories, e.g., alloys (Co-Cr, Ni-Cr) stainless steel, flexible dentures, bridges and porcelain teeth.
Description
AX-J5 Dental Laboratory Polishing Compact Unit features low noise, high rotational speed, easy operations, and it is equipped with a suction box with light which can be connected to a dust collector for dust-free operations. The lathe, lighting system, safety eye shield and suction system make it convenient to use.
Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 370W
Rotational speed: 3000rpm
Max. Pressure:26kPa
Airflow Rate:172m³/h
Max. Vacuum:-16kPa
Max. Noise:<60dB
Dimensions: 46cm × 60cm × 50cm (H W D)
Shipping Dimensions: 53cm × 68 cm × 50cm (H W D)
Weight: 48kg
Parts Included
Machine
Manual × 1
Power Cord × 1
Fuse
× 2
Polishing Canvas Wheel
× 2
Lighting Tube
× 1
Thin Spindle
× 2
Filter Bag
× 2
Spare Parts&Accessories

|
