Item

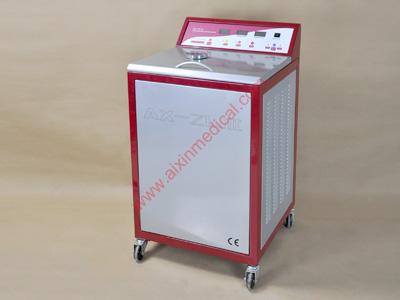

AX-ZL3A Middle Frequency Induction Casting Machine

Article Number
MW01003

Certification
ISO9001:2000 Approved

Purpose
This unit be used with most dental alloys except titanium. It can be used for casting partial frameworks as well we crown and bridge.

Description
The AX-ZL3A Medium Frequency Induction Casting Machine is upgraded from the AX-ZL3 model with digital display and touch control buttons, which makes voltage reading and operations much easier.
Comparing to a high frequency induction casting machine, it has the following advantages.
1. Highly efficient, low power consumption and low power rating (2.5kW) thanks to the advance all-transistor circuitry.
2. No preheating is needed, melting and casting can start immediately. The interval time between two castings is only two minutes, excellent for continuous casting.
3. It can work under 220V/110V voltage.
4. Safer and more reliable thanks to the low working voltage and low high-frequency radiation.
5. Compact size and lower weight.

Technical Data
Power Supply: 220V/110V 50/60Hz
Power Consumption: 2,500W
Motor: 370W
Centrifugal Rev: 550rpm
Centrifugal Radius: 21cm
Casting Method: Centrifugal Casting
Max. Melting Amout: 50g
Heating Method: Medium Frequency Induction Heating
Melting Time: 30g≤65sec (standard)
Cooling Fashion: Air Cooling
Dimensions: 93cm x 52cm x 52cm (H W D)
Shipping Dimensions: 111cm x 61cm x 60cm (H W D)
Weight: 120kg


Parts Included
Machine × 1
Manual × 1
Fuse × 16
Crucible × 5
Brush ×1
Tongs × 1
Casting Rings × 3
"V" Rings Bracket × 3
Silicon Bridge × 2
Electric Resistance × 1
Capacitance × 1


Spare Parts&Accessories


Crucible (without cover)
Crucible (with cover)
Graphite Crucible
Casting Rings (large/middle/small)
"V" Rings Bracket
Induction Coil
Tongs
Mainboard
Article Number MW03050
Article Number MW03051
Article Number MW03052
Article Number MW03053
Article Number MW03061
Article Number MW03065
Article Number MW03057
Article Number MW03058
