Item

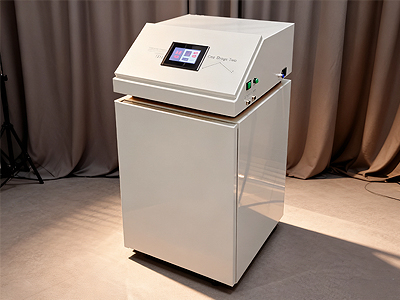

KINGKONG1200 Dental Vacuum Dust Extractor

Article Number
PF04012

Certification
ISO9001:2000 Approved CE Approved

Purpose
This product is an intelligent brushless dust collection system developed by Aixin Medical for the dental prosthetics manufacturing industry.

Description
This product is an intelligent brushless dust collection system developed by Aixin Medical for the dental prosthetics manufacturing industry. It is designed to efficiently collect dust generated during prosthetics manufacturing process. It features compact size, low noise, strong suction power, and it is maintenance-free, making it suitable for various work scenarios. It adopts 3D sealing technology and intelligent coordinated control.

This product utilizes a unique three-chamber 3D sealing design, which strictly separates the dust collection chamber, control chamber, and the filtration chamber. Comparing with similar products on the market, this design ensures lower operating noise and a longer service life.

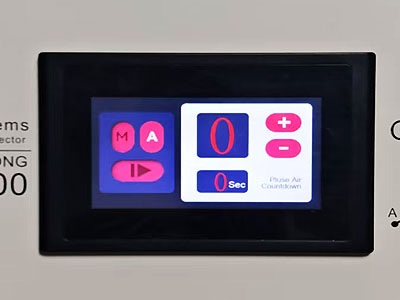

Its control system employs an embedded microcomputer and touchscreen control. The navigation menu has a clear logic and is easy to use, supporting both automatic and manual operation modes. It can achieve synchronized operation with zirconia milling machines via digital signals.

It uses a high-quality brushless motor, which can operate continuously under normal working temperatures with good heat dissipation.

It also adopts an automatic pulse dust cleaning design. When the operation status switches to OFF, the system will automatically remove dust attached to the filter, eliminating the need for manual cleaning and enabling maintenance-free operations for a long time.

Technical Data
Power Supply:220V/50 110V/60Hz
Power Consumption:1200W
Motor Category:Brushless
Adjustment Mode:6Gear
Air flow Rate:290m³/h
Vacuum Range:2.0-9.5KPa
Noise Range:56-68dB
Diameter of pipe:42mm
Dimensions:93cm×45cm×48cm (H W D)
Weight:47Kg


Parts Included
Machine × 1
Manual × 1
Power Cord × 1
Fuse × 2
Dust Pipe × 1
Signal line × 1
